SAGE III/ISS Initial Data Release for Public Use

By October 25, 2017Uncategorized

The first wave of atmospheric data from SAGE III/ISS is now available for public use through NASA’s Atmospheric Science Data Center. The data was collected from June 2017 to August 2017 and includes measurements of ozone, aerosols and nitrogen dioxide. SAGE III scientists are seeking feedback on this initial data from the international atmospheric science community.

“The intention of this initial release is validation,” said SAGE III Project Scientist Joe Zawodny of NASA’s Langley Research Center in Hampton, Virginia. “We’re putting it out there so people can start comparing it to their measurements. A lot of these folks have been around for a very long time. They’ve used [data from previous SAGE missions] in the past. They are the ones who are best positioned to give us honest opinions of what they like and what they don’t like.”

While its predecessor SAGE II provided key evidence that the ozone layer was showing signs of recovery, SAGE III will continue to monitor ozone recovery, but with more of Earth’s overall atmosphere in its measurements. Monitoring both the stratosphere and the mesosphere (the layer directly above the stratosphere), data collected will help scientists to understand ozone trends.

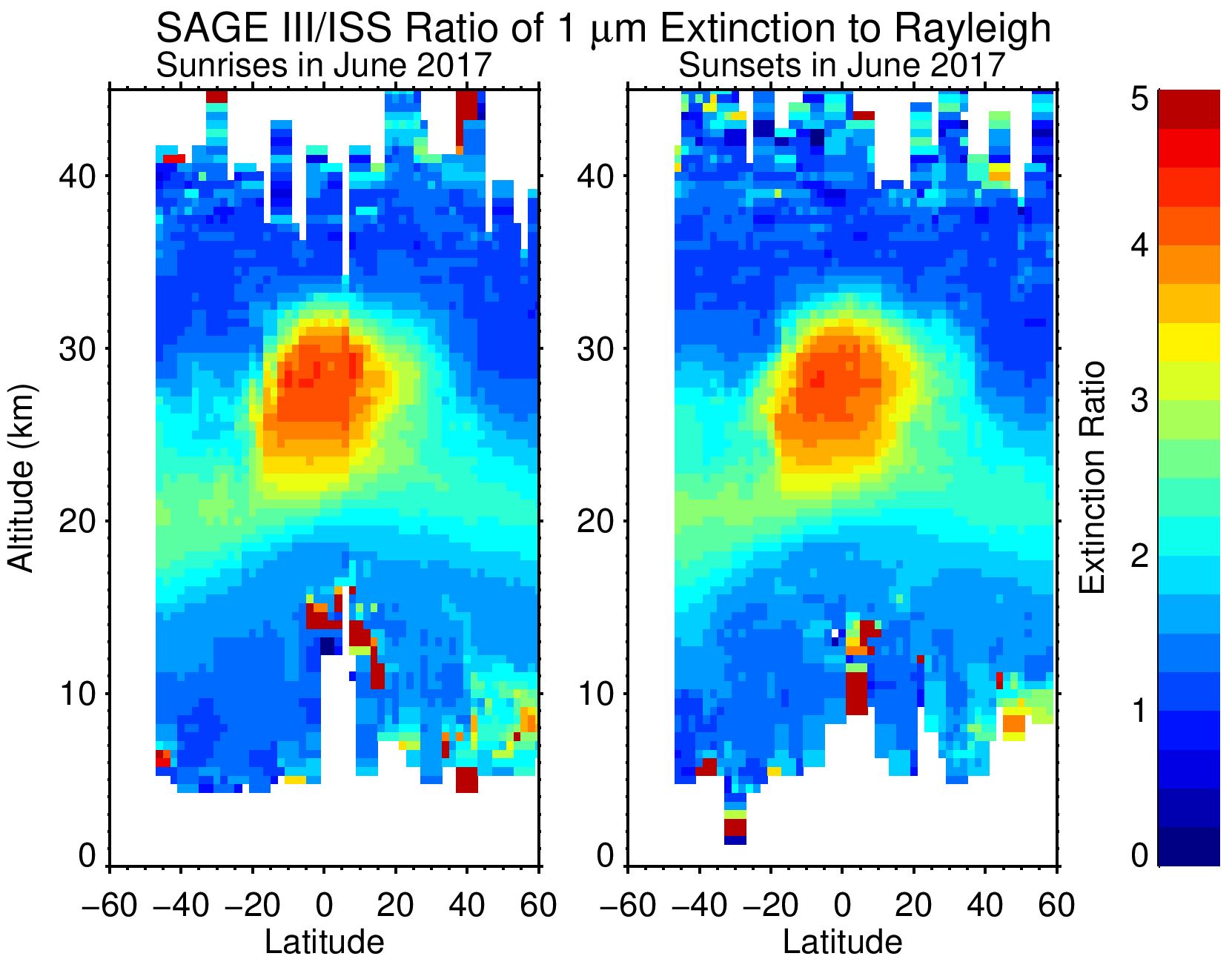

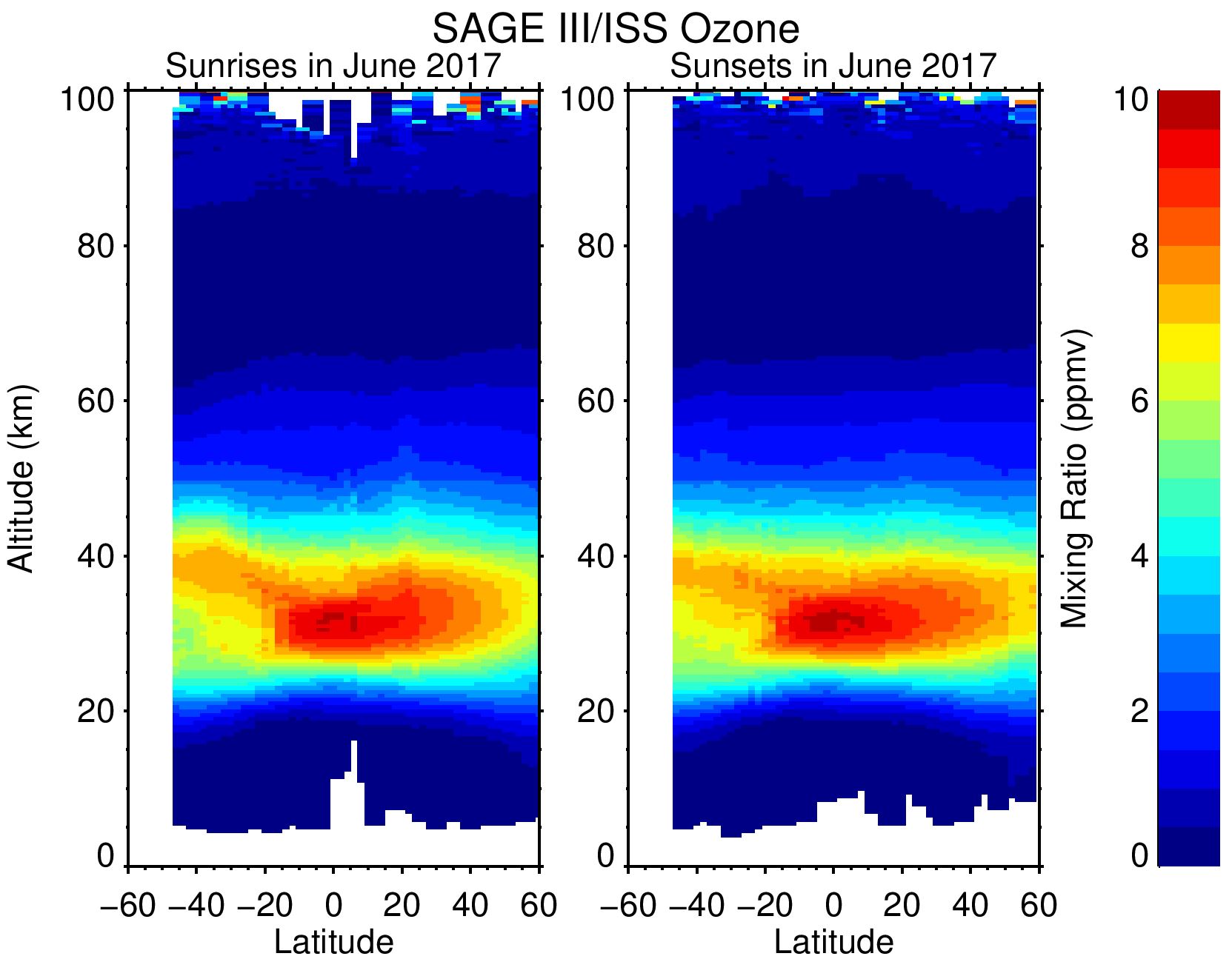

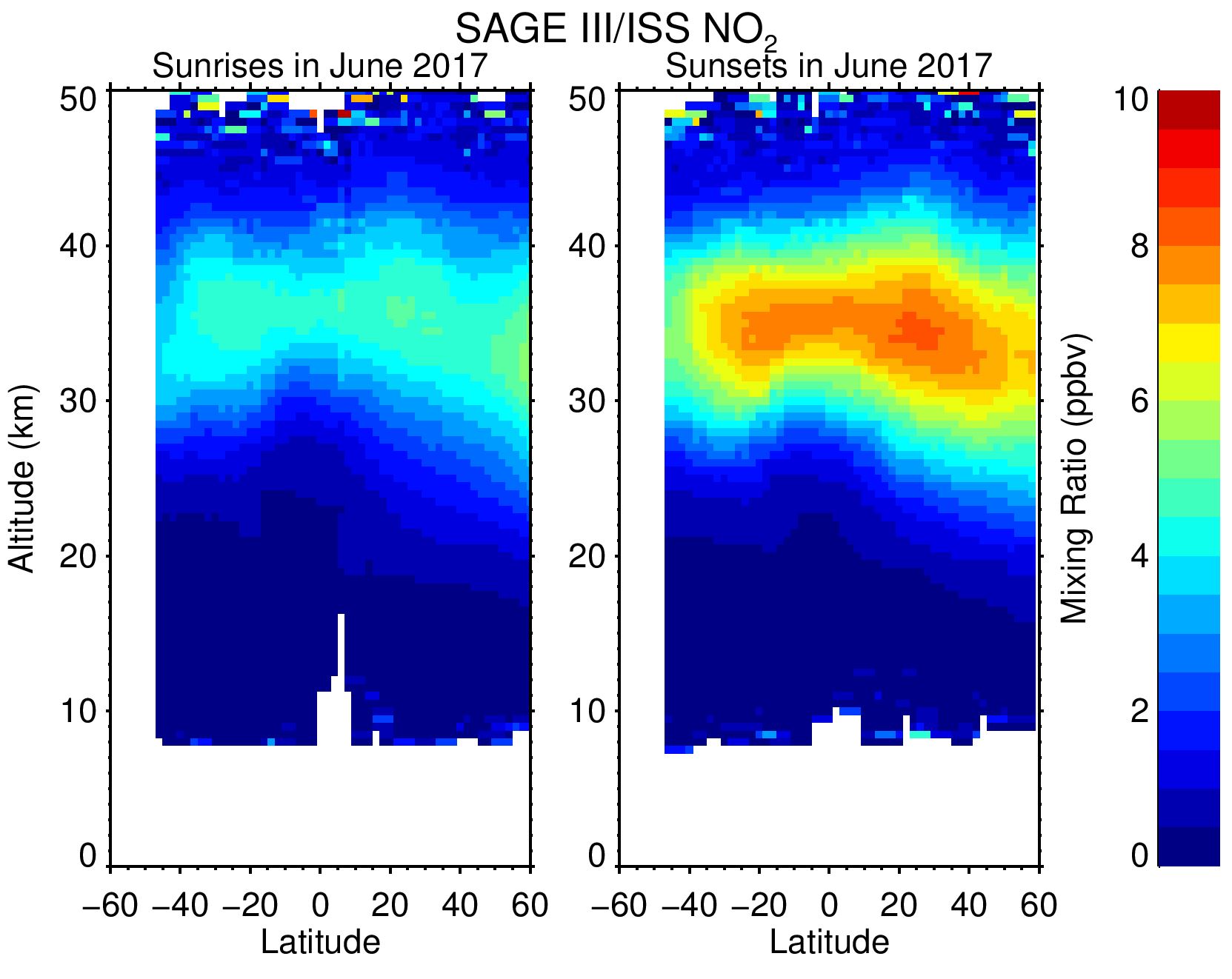

The SAGE III instrument makes these measurements through three different methods: Solar occultation, lunar occultation, and limb scatter. SAGE III makes solar occultation measurements by scanning the sun as it rises and sets. Lunar occultation measurements are made by the instrument scanning the moon as it rises and sets, but only when the phase of the moon is greater than half-moon. Limb scatter measurements are made by the instrument scanning the Earth’s edge to collect solar radiation scattered through the atmosphere between sunrise and sunset. This initial data release contains only solar occultation measurements. The six plots below show a latitude-altitude cross section of ozone, nitrogen dioxide and aerosols (extinction ratio) for both sunrise and sunset during June 2017.

SAGE III includes a disturbance monitoring package that detects vibrations on the station. For the current release, data that may have been affected by significant vibrations or movements were not used.

The SAGE III science team will begin releasing lunar occultation data later this year. Water vapor data is not part of this initial release, but will be available in future datasets. Following this initial release, SAGE III data will be released on a monthly basis.
